対応CPU
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU、Supports Intel® Turbo Boost Technology 2.0 、* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.* Refer to www.asus.com for CPU support list
②搭載チップセット
Intel® Z390
メインメモリ
4 x DIMM, Max. 64GB, DDR4- 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 、デュアルチャンネル Memory Architecture 、Supports Intel® Extreme Memory Profile (XMP)、* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1 Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously
マルチGPU対応
Supports NVIDIA® 2-Way SLI™ Technology 、Supports AMD 3-Way CrossFireX™ Technology
拡張スロット
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 、1 x PCIe 3.0/2.0 x16 (max at x4 mode) 、3 x PCIe 3.0/2.0 x1
③ストレージ機能
Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)、6 x SATA 6Gb/s port(s)、Support Raid 0, 1, 5, 10、Intel® Optane™ Memory Ready *3
LAN機能
Intel® I219V、Anti-surge LANGuard、ROG GameFirst Technology
④オーディオ機能
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A、 - Dual Headphone Amplifiers、- Impedance sense for front and rear headphone outputs、- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking、- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input、- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *4 Audio Feature :
- SupremeFX Shielding™ Technology、- Optical S/PDIF out port(s) at back panel、- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals、- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity、- Sonic Radar III、- Sonic Studio III + Sonic Studio Link
⑤USB機能
Intel® Z390 Chipset : 1 x USB3.1 Gen 1 front panel connector port(s)
Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-CTM)
Intel® Z390 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z390 Chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
ROGシリーズ独自搭載機能
ROG Exclusive Software、- RAMCache III、- CPU-Z、- GameFirst V、- Sonic Studio III + Sonic Studio Link、- Sonic Radar III
独自機能
OC Design - ASUS PRO Clock Technology、- Full BCLK range for extreme overclocking performance、5-Way Optimization by Dual Intelligent Processors 5、- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App、ASUS Optimem II：- Optimem (Improved DDR4 stability)- Improved DDR4 Stability、AURA :- Aura Lighting Control、- Aura RGB Strip Headers、- Aura Lighting Effects Synchronization with compatible ASUS ROG devices、- Aura Addressable Strip Header(s)、ASUS Exclusive Features :- AI Suite 3、- Ai Charger 、ASUS EZ DIY :- ASUS CrashFree BIOS 3 、- ASUS EZ Flash 3 、ASUS Q-Design :- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)、- ASUS Q-Slot、- ASUS Q-DIMM 、Gaming Aesthetics :- 3D printing friendly
- AURA-RGB Lighting、Digi+VRM、Turbo APP、M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)、DIY Friendly Design、- Procool- SafeSlot- Digi+ VRM- DRAM Overcurrent Protection- Highly Durable components- ESD Guards、MemOK! II、Armoury Crate
⑧背面インターフェース
1 x DisplayPort、1 x HDMI、1 x LAN (RJ45) port(s)、4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM) 、2 x USB 3.1 Gen 1 (blue) 、2 x USB 2.0 、1 x Optical S/PDIF out、5 x Audio jack(s)
⑨基板上インターフェース
1 x Aura Addressable Strip Header(s)、1 x AAFP connector、2 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1 front panel TypeC™ connector、1 x USB 3.1 Gen 1(up to 5Gbps)、connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)、2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)、1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)、1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)、6 x SATA 6Gb/s connector(s)、1 x M.2_FAN connector、1 x CPU Fan connector(s)、1 x CPU OPT Fan connector(s) 、2 x Chassis Fan connector(s) 、1 x W_PUMP+ connector 、1 x 24-pin EATX Power connector(s)、1 x 8-pin ATX 12V Power connector(s)、1 x System panel(s) (Chassis intrusion header is inbuilt)、1 x Thermal sensor connector(s)、1 x CPU OV、1 x Clear CMOS jumper(s)、1 x Node Connector(s)、1 x 14-1 pin TPM connector、1 x COM port header、1 x AIO PUMP Header

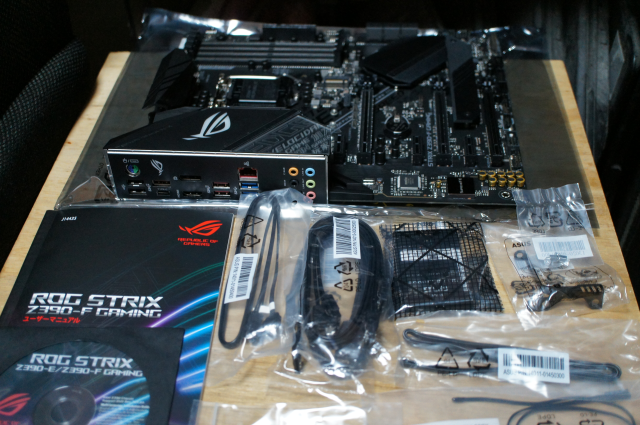

⑩主な付属品
User's manual、4 x SATA 6Gb/s cable(s)、1 x M.2 Screw Package、1 x Supporting DVD、1 x MOS fan bracket kit、1 x CABLE TIE BLACK、1 x SLI HB BRIDGE(2-WAY-M)、1 x ROG Strix stickers、1 x ROG Door Hanger(s)、1 x Extension Cable for RGB strips (80 cm)、1 x Extension cable for Addressable LED、1 x Thermistor cable(s)
⑪BIOS機能
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
⑫管理機能
WOL , PXE
⑬OS
Windows® 10 64-bit
⑭フォームファクター（サイズW×D）
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
⑮その他
*1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.
*2 When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.
*3 Intel® Optane Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
